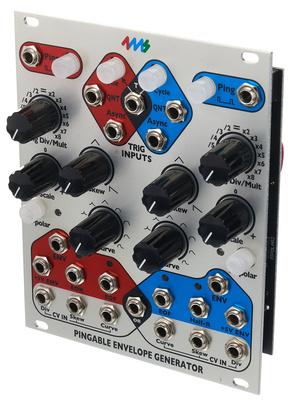

4ms Pingable Envelope Generator

Product Description

4ms Pingable Envelope Generator, Eurorack Module, Two-channel function generator, Envelope times are determined by the time interval between two trigger impulses or tap inputs (pings), Ping times can be divided by a factor of 8 or multiplied by a knob (CV controllable), Skew control with CV input for setting the envelope shape: attack/decay ratio, Curve control with CV input for setting the envelope curve: exponential, linear, logarithmic, Bipolar scale control (attenuator) for envelope output (range: -10 V to +10 V), Switchable bi-polar mode - range: +/- 5 V, Cycle mode switchable per channel, two trigger inputs (quantised and asynchronous), 2 envelope outputs (variable level and +5V), EOR and EOF trigger outputs, Power consumption: 105 mA (+12 V) / 35 mA (-12 V), Width: 20 U, Depth: 26 mm
