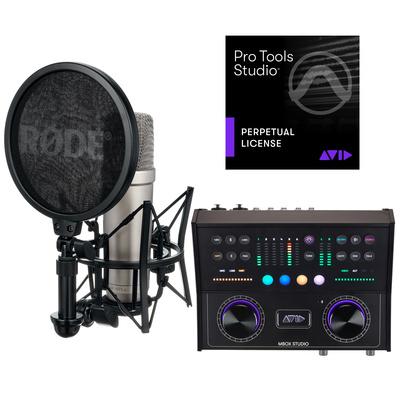

Avid MBOX Studio Recording Bundle@+*Bundle offer comprising*
Avid MBOX Studio@+*USB-C 2.0 Audio Interface*
Integrated high-impedance re-amping output with ground lift for flexible guitar recording
Two-channel effect loop with switchable output impedance
Additional Bluetooth stereo input and output
With max. resolution 24 bit / 192 kHz and up to 21 inputs and 22 outputs
4 High-quality combined preamps for microphone and instrument signals with variable input impedance
Switchable +48 V phantom power, -10 dB pad, phase inversion and high-pass filter
Complete monitor control with 2 stereo monitor paths
2 individually adjustable stereo headphone outputs and source selection as well as a built-in talk back microphone
2 Large rotary controls with push-button function for gain and volume as well as push-buttons for basic channel and monitoring functions provide instant access to all important parameters
DSP-based monitor mixer with switchable soft limiter and parametric 4-band channel EQ per input as well as reverb and delay
4 Buttons and 2 footswitch connections for user-definable functions and start button for Mbox Control application
Ergonomic metal desktop housing with Kensington security lock
MIDI input and output: 5-pin DIN connector
2 Footswitches / foot pedal inputs: 6.3 mm TRS jack
Dimensions (W x D x H): 288 x 225.3 x 105.2 mm
Weight: 2.8 kg@+*Analogue inputs:*
4x Combo input (XLR / 6.3 mm jack balanced)
4x Line / Fx return input (6.3 mm jack balanced)
Max. input level: 14 dBu, gain range: 60 dB, dynamic range: 112 dB (Mic / Line)
108 dB (Instr)
THD+N: 0.001 % (Mic / Line)
0.004 % (Instr)
ON microphone input: -129 dB (A-weighted), frequency response: 20 Hz to 20 kHz, ± 0.125 dB@+*Analogue outputs:*
4 Monitor outputs: 6.3 mm jack balanced
2x Line / FX send output (balanced 6.3 mm jack)
Max. output level: 19 dBu, dynamic range: 110 dB (monitor / line)
103 dB (Hi-Z)
THD+N: 0.0012 % (monitor)
0.002 % (line
Hi-Z), frequency response: 20 Hz to 20 kHz, ± 0.125 dB (line, monitor), ± 0.3 dB (Hi-Z)
2 x Headphone output (6.3 mm jack) stereo
Dynamic range: 102 dB, frequency response: 20 Hz to 20 kHz, ± 0.2 dB, output power: 120 mW > 32 Ohm@+*Digital inputs:*
Optical input (8 channels ADAT or 2 channels S/PDIF)
Coaxial S / PDIF input
Bluetooth with forwarding to MBox Control@+*Digital outputs:*
Optical output (8 channels ADAT or 2 channels S/PDIF)
Coaxial S / PDIF output
Bluetooth@+*Delivery contents:*
MBOX Studio USB-Interface
USB-C cable
USB-C socket to USB-A plug adapter
12 V DC mains adapter
Registration card
Pro Tools Studio Perpetual license
Sibelius Artist annual subscription (one-year licence)
Ignition Pack 3
MBOX Control application
Printed, multilingual quick start guide
Rode NT1-A Complete Vocal Recording@+*Vocal Recording Set*@+*Delivery contents:*
Rode NT-1 A large diaphragm microphone
Deluxe SM6 shock mount with integrated fabric pop shield
6 m XLR cable
Dust bag
Suitable case: Art. #486805# (not included)@+*Technical data NT1-A:*
1" Large diaphragm microphone
Polar pattern: Cardioid
Frequency response: 20 - 20,000 Hz
Max. sound pressure level: 137 dB
Output impedance: 100 Ohm
Gold-plated output contacts
Dimensions (H x W x D): 190 x 50 x 50 mm
Weight: 326 g@+*Note:* requires 48 V phantom power."
