Blackmagic Design DeckLink Studio 4K
Best available price
£499.00
3 stores comparedSee all offers ↓
Lowest total price among 3 stores
Free shipping available on the cheapest offer
Fair Price· Near 90-day average
90d Low
£509.67
Best seen
90d High
£509.67
Worst seen
90d Average
£509.67
Baseline
30d Forecast
—
→ Stable
Price History
Avg priceMin–Max band
Fair Price· Near 90-day average
Stores:
Deep Intelligence Analysis
RSI · Bollinger Bands · Buy/Sell Signal · News
Compare offers
Product Description

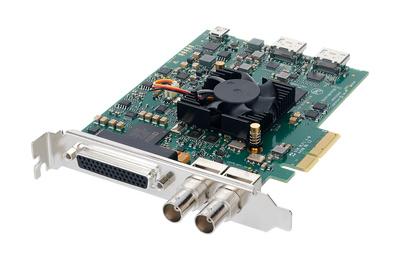

- Blackmagic Design DeckLink Studio 4K
- I/O Card for SD/HD/4K Video
- Includes SDI, component, composite
- S-video
- HDMI
- A wide range of analogue video and audio devices can be connected
- Enables seamless switching between SD
- HD
- 2K and Ultra HD
- Supported applications: DaVinci Resolve
- Fusion
- Final Cut Pro
- Adobe Premiere Pro CC
- Avid Media Composer
- Adobe After Effects CC
- Avid Pro Tools
- Steinberg Cubase
- Autodesk Smoke
- Adobe Photoshop CC and many more.
- Compatible operating systems: Mac Mojave 10.14
- Mac Catalina 10.15 or higher / Windows 8.1 and 10, both 64 bit / Linux
- HD down-conversion: built-in high quality hardware outputs for down-conversion: HD-SDI via SDI output
- SD/SDI via SDI output and FBAS and S-Video when processing HD video formats on playback
- Switching from analogue video to component and selection between HD or SD output
- Choice of letterboxed, anamorphic 16:9 and centred 4:3 output
- HD up-conversion: built-in high quality hardware up-conversion from SD to 720HD or 1080HD on playback
- Choice of 4:3 pillarbox
- 14:9 pillarbox and 16:9 zoom
- HD outputs via HD-SDI
- HDMI and component analogue
- Real-time hardware-based colour space conversion
- Cross conversion: integrated high quality hardware cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback.
- Power consumption: 22 W
- Weight: 166 g
- Includes breakout cable for analogue and RS-422 control / HDMI bracket@+*Connections:*@+@+
- SDI video inputs: 1 connector for 10-bit SD/HD/2K/4K, supports 6G 4:2:2 and 3G 4:4:4.
- SDI video outputs: 1 connector for 10-bit SD/HD/2K/4K, supports 6G 4:2:2 and 3G 4:4:4
- Analogue video inputs: 1 YUV component connector via 3 BNC connectors
- 1 for FBAS
- 1 for S-Video (the component connector supports HD and SD)
- Analogue video outputs: 1 YUV component connection on 3 BNC connectors
- 1 for FBAS
- 1 for S-Video
- 1 for SD-SDI (the component connection supports HD and SD)
- Analogue audio inputs: 4 channels balanced analogue audio via 1/4" jack
- Analogue audio outputs: 4 channels balanced analogue audio via 1/4"" jack (channels 3 and 4 are switchable to AES/EBU outputs)
- AES/EBU audio inputs: 2 channels unbalanced audio with sample rate converter
- AES/EBU audio outputs: 2 channels unbalanced (analogue outputs 3 and 4 are switchable to AES/EBU outputs for audio 3 and 4, and to outputs 5 and 6 - using these features gives a total of 6 AES/EBU audio channels for output)
- SDI audio inputs: 16 channels embedded in HD/2K/4K
- 8 channels embedded in SD
- SDI audio outputs: 16 channels embedded in HD/2K/4K
- 8 channels embedded in SD
- HDMI video inputs: 1 HDMI type A connector
- HDMI video outputs: 1 HDMI type A connector
- HDMI audio inputs: 8 channels embedded in SD
- HD
- 4K
- HDMI audio outputs: 8 channels embedded in SD
- HD
- 4K
- Sync input: Tri-Sync or Black Burst
- Device control: Sony compatible RS-422 interfaces for VTR control
- Serial ports TxRx, direction reversible via software control
- Computer interface: PCI Express with 4 lanes Generation 2, compatible with 4-
- 8- and 16-lane PCI Express slots"
