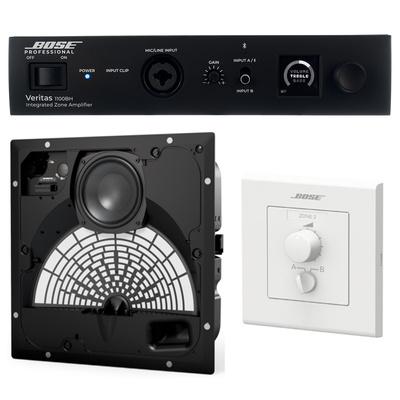

Bose Professional Conference 1 Bundle@+*Bundle offer comprising*
Bose Professional EdgeMax EM180-LP@+*Ceiling Speakers*
PhaseGuide technology
Nominal horizontal dispersion angle of 180°
High frequency compression driver
5.25-inch woofer supports wall-boundary loading for greater bass response and performance
2-Way passive crossover with transformer for 70 V / 100 V audio systems
Spring-loaded mounting system with snap-in function
Magnetically fixed grille
Certified according to UL1480A for safe installation in ceilings
Frequency range (+/-3 dB): 50 Hz to 18,000 Hz
Frequency range (-10 dB): 45 Hz to 19,000 Hz
Nominal dispersion: 75° Vertical
180° horizontal
Continuous power rating: 32 W (128 W peak)
Sensitivity (SPL / 1 W at 1 m): 91 dB SPL
Max. SPL at 1 m: 106 dB SPL (112 dB SPL peak)
Driver configuration: 1 x 5.25‘ woofer and 1 x 1.3’ compression driver
Nominal impedance: 8 Ohm (transformer-bridged)
Weight: 7.6 kg
Colour: White
Bose Professional Veritas 1100BH@+*Bluetooth-Enabled Single-Channel Installation Power Amplifier*
Total output: 100 W at 70 V / 100 V
Frequency range: 70 Hz - 18,000 Hz
Dynamic range: 88 dB
Setup via quick start QR code
Inputs: Two RCA stereo pairs (line)
1x XLR/6.3 mm jack combo socket (line)
Bluetooth 5.0 and 1x 4-pin Euroblock (page)
Outputs: One inverted 3-pin Euroblock (speaker) and 1x RCA stereo pair (aux)
1x connector for normally open contact (mute)
1 x USB-C for software updates
1x input for Bose ControlCenter zone controller
Passive convection cooling
Dimensions (W x H x D): 214 x 44 x 310 mm
Weight: 3.2 kg@+*Includes:*
2x mounting brackets
6x screws
4x mounting feet with pins
1x 4-pin Euroblock connector
1x 3-pin Euroblock connector
1x 2-pin Euroblock connector
1x power cable
1x installation guide
Bose Professional ControlCenter CC-2 White@+*Simple Volume Control and A/B Source Selection*
For Bose FreeSpace and ControlSpace
Passive 10kOhm volume control
Channel selection via dipswitch
Fits in a one-gang flush-mounted electrical box
Colour: White
