Product Fundamentals

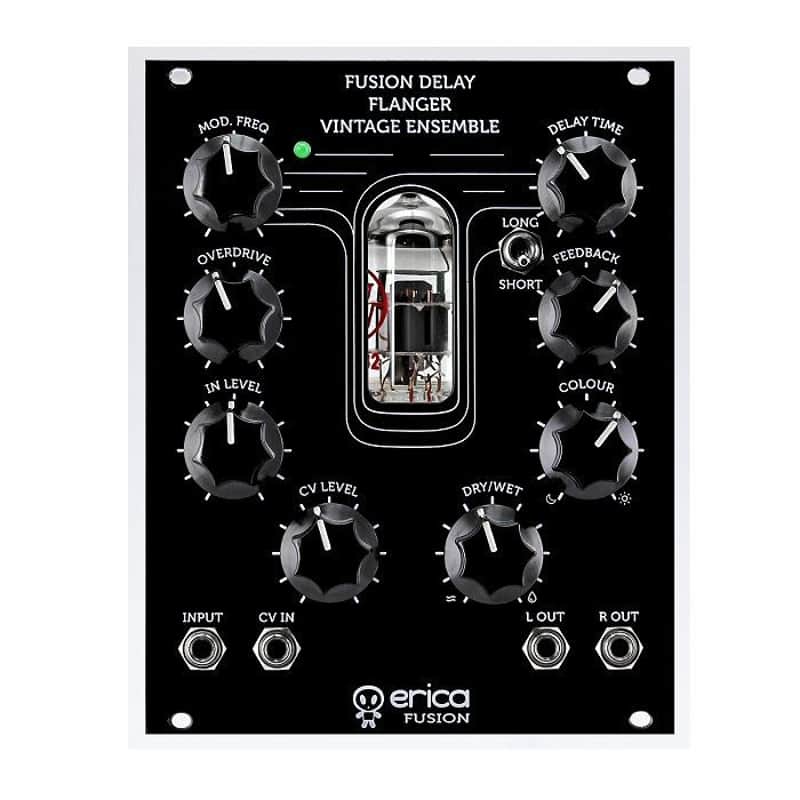

- Proper weird and wonderful stuff from Erica's valve-based Fusion range. Mono in, stereo out analogue effects module combining BBD delay with valve overdrive and low-pass filter. Lovely. Supplier's Notes: Erica Synths Fusion Delay/Flanger/Vintage Ensemble module is a distinct multifunctional analogue effects module that combines BBD chip based effects with an adjustable tube overdrive in the delay output and a feedback path for extra thickness of the sound. For more flexibility lowpass filtering is fully adjustable from none to extreme. A special feature, not found in eurorack, is the Vintage Stereo Ensemble - an effect that's common on vintage synthesizers to create a moving and thick spatial sound from a monaural tone generator, be it FM
- DCO or any other kind. Such a spatial effect is achieved by mixing dry source with delayed and lowpass filtered out of phase signal. All Fusion modules by default are configured to work with regular eurorack PSU. Due to the fact that cold tube heaters have lower resistance
- Fusion modules have significant power consumption peak at startup, when power consumption almost doubles for 1-2 seconds. This is not a problem with linear PSUs that have power inertia, but may cause switching PSU internal protection turn off the power supply. Please make sure your PSU has some headroom before installing multiple Fusion modules. Technical specifications: Audio input signal level: up to 20V ptp Max delay time SHORT setting: 20ms Max delay time LONG setting: 200ms LFO range: 0.1Hz - 30Hz Power supply: bipolar +-12V , eurorack standard Power consumption: Eurorack PSU configuration: 35mA@+12V
- 170mA@-12V (NB - start-up power consuption for few seconds is -250mA) Module width: 20HP Module depth: 35mm
