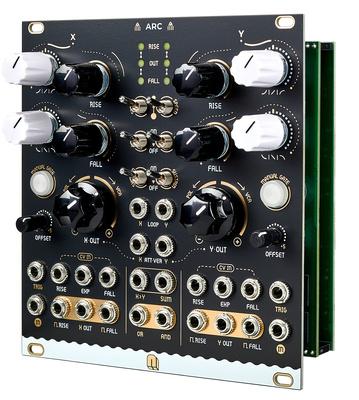

NANO Modules ARC

Product Description

NANO Modules ARC, Eurorack Module, Analogue dual function generator and modulator, Each channel can function as an envelope generator (AD or ASR), LFO or VCO with variably adjustable waveform, voltage-controlled slew limiter and more, Rise and fall time adjustable per channel (selectable time range: 0.5 ms - 7 min), Freely adjustable curve for rise and fall segment (exponential via linear to logarithmic), Adjustable offset (-5 V to +5 V) and attenuator/polariser with CV input per channel, Loop mode with gate input, Per channel: signal input, trigger input, CV inputs for rise & fall, exponential CV input, signal output and gate outputs for rise and fall phase, Logic outputs for OR, AND, Sum and X>Y, LED status indicators, Power requirement: 150 mA (+12 V) / 130 mA (-12 V), Width: 24 HP, Depth: 40 mm
