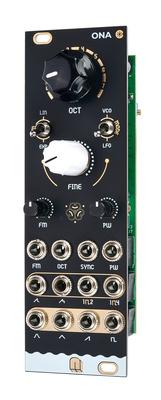

NANO Modules ONA

Product Description

NANO Modules ONA, Eurorack module, Analogue VCO/LFO on CEM3340 basis, Octave selector switch (control range: 8 octaves) and Fine-Tune control, Selector switch for VCO and LFO mode, Selector switch for linear or exponential FM, CV inputs for FM and pulse width with attenuators, Hard sync input, Waveform outputs for: Sine, triangle, sawtooth, pulse, two complex waveforms and two square sub-octaves (-1 octave and -2 octaves), Current consumption: 50mA (+12V) / 30mA (-12V), Width: 8 HP, Depth: 30 mm
