Price updated 29 Apr 2026, 08:00

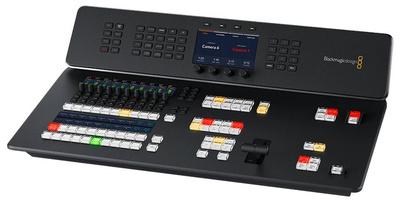

Blackmagic Design ATEM Television Studio HD8
Best available price
£2777.00
2 stores comparedSee all offers ↓
Lowest total price among 2 stores
Free shipping available on the cheapest offer
Fair Price· Near 90-day average
90d Low
£2777.00
Best seen
90d High
£2949.00
Worst seen
90d Average
£2863.00
Baseline
30d Forecast
—
→ Stable
Price History
Stores:
Deep Intelligence Analysis
RSI · Bollinger Bands · Buy/Sell Signal · News
Compare offers
| Price + Ship | Store | Price | Shipping | Stock | Condition | Rating | |
|---|---|---|---|---|---|---|---|
Best£2777.00 Free P&P | Best£2777.00 | Free | Out of stock | new | — | ||
£3099.00£3166.00-2% Free P&P | £3099.00£3166.00-2% | Free | In stock | new | — |
Product Description
- Blackmagic Design ATEM Television Studio HD8
- Compact Live Production Mixer with Built-In Broadcast Control Panel
- 8 Scalable 3G-SDI inputs
- Built-in streaming hardware
- Master recorder
- Multiview
- USB webcam support
- DVE processor
- 4 ATEM Advanced Chroma Keyer
- Media Player
- Talkback
- Four-way Ethernet switch
- Optional internal cloud media storage
- Power supply: 1 internal AC power supply for 100 - 240 V and 50/60 Hz with IEC-C14 connector (power supply cable not included)
- 4-Pin XLR 12 V DC socket for external power supply or battery charging
- Power consumption: max. 100 W
- Dimensions (W x D x H): 585.2 x 375.2 x 161.2 mm
- Weight: 6.76 kg@+@+*Connections:*@+@+
- 8 SDI video inputs
- 12 SDI video outputs
- SDI rates: 1.5 G
- 3 G
- 1 HDMI video output
- Total audio inputs: 2 XLR for balanced analogue audio
- 1 BNC for 32-channel MADI digital audio
- 2 RCA for stereo analogue audio
- 1 5-pin XLR female for talkback
- Total audio outputs: 4 1/4" jacks for analogue audio
- 1 BNC for MADI digital audio with 64 channels, up to 50 of them active
- 1 5-pin XLR female for talkback
- SDI audio inputs: 4 embedded audio channels on all SDI inputs
- SDI audio outputs: 2 embedded audio channels on all SDI outputs
- Time code connections: 1 BNC input
- 1 BNC output
- Reference inputs: 1 BNC input
- 1 BNC output for tri-sync or black burst
- Video inputs with resync on all 8 inputs
- Frame rate and format converter on all 8 inputs
- 2 SDI aux outputs
- 1 SDI programme outputs
- Webcam output: 2 USB-C ports support 720p or 1080p with PGM frame rates
- Number of multiviews: 1 3G-SDI
- 1 HDMI
- Remote: RJ12 port supports RS-422
- Control panel connection: Ethernet, direct connection between panel and chassis or via network
- Internal time code generator
- Talkback: RJ45 for third-party talkback systems
- Tally output: added via Ethernet connection using Blackmagic Design GPI and Tally Interface device (not included)
- Ethernet: 4 x 5J45 with Internet network switch, supports 10/100/1000Base-T
- Computer interface: 2 USB-C ports support USB 2.0 for recording to external drives, webcam output, software control, software updates and for connecting the mixer@+@+*Standards:*@+@+
- HD video input standards: 720p/50
- 720p/59.94
- 720p/60
- 1080i/50
- 1080i/59.94
- 1080i/60
- 1080p/23.98
- 1080p/24
- 1080p/25
- 1080p/29.97
- 1080p/30
- 1080p/50
- 1080p/59.94
- 1080p/60
- SDI compliance: SMPTE 292M
- SMPTE 296M
- SMPTE 424M
- SMPTE 425M Level A and B
- Video sampling frequency: 4:2:2
- Colour accuracy: 10 bit
- Colour spaces: REC 709
- Automatic SDI switching: automatic detection of 1.5G-SDI and Level A or Level B 3G-SDI@+@+*Features:*@+@+
- 4 Upstream keyers
- 2 Downstream keyers
- 4 Advanced Chroma Keyers
- 1 SuperSource
- 7 Linear/Luma Keyers
- Transition keyers: 1 Stinger
- 1 DVE
- Total number of layers: 8
- Pattern generators: 7
- Colour generators: 2
- Built-in control panel for controlling all mixer functions and for settings
- 16 Routable windows
- Source label window
- Tally: red light indicates programme, green preview
- Talkback support, n-1 support@+@+*Streaming:*@+@+
- Direct streaming: supports direct live streaming via Ethernet using Real Time Messaging Protocol (RTMP) or via USB-C over a shared mobile internet connection@+@+*Recording:*@+@+
- Direct recording of video and audio via USB-C expansion port directly to external storage devices
- Video recording: Programme recording in H.264 as MP4 file in the set streaming quality and in ATEM video format with AAC audio
- Storage media format: supports media formatted in ExFAT (Windows/Mac)
- APFS or HFS+ (Mac) file systems@+@+*Multiview monitoring:*@+@+
- 1 Multiview for SDI and HDMI outputs configurable for 16
- 13
- 10
- 7 or 4 views, including for monitoring programme, preview, inputs, media players, downstream keys
- SuperSource
- Clean feed with optional identifiers and audio level meters
- Multiview video standard: HD
- Minimum screen resolution: 1366 x 768@+@+*Media Player:*@+@+
- 2 Media players
- Channels: Fill and key signals for each media player
- Media Pool capacity for still images: 20
- Media Pool still image formats: PNG
- TGA
- BMP
- GIF
- JPEG and TIFF
- Media Pool capacity for clips: 2 up to 1080p/60
- Media Player clip length in 720 HD: 400 frames
- Media Player clip length in 1080 HD: 200 frames
- Media Pool video file format: TGA sequence
- Media Pool audio file format: WAV
- MP3 and AIFF@+@+*Software:*@+@+
- Operating software included free of charge: ATEM Software Control for Mac 12.0 Monterey
- Mac 13.0 and higher, and Windows 10 and 11."
