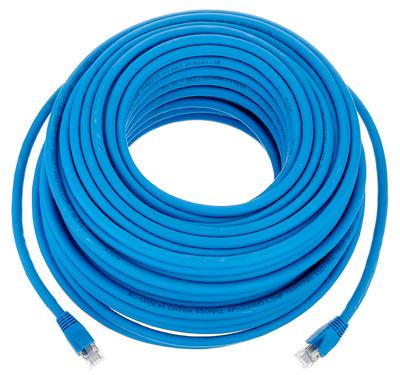

Kramer C-UNIKat-100 Cable 30.5m

Name: Kramer C-UNIKat-100 Cable 30.5m
Brand: Kramer
Price: 56.90 GBP
Availability: OutOfStock

Best available price

£56.90

Only available at Thomann

Fair Price· Near 90-day average

90d Low

£56.90

Best seen

90d High

£56.90

Worst seen

90d Average

£56.90

Baseline

30d Forecast

—

→ Stable

Price History

Avg priceMin–Max band

Fair Price· Near 90-day average

Stores:

Store	Price	Shipping	Total	Condition	Stock
BestThomann	£48.00	£8.90	£56.90	New	—	Buy now

Kramer C-UNIKat-100 Cable 30.5 m
KAT 6A U/FTP cable for video and LAN
Length: 30.5 m
ScreeningKAT 6A cable suitable for all current signal types
Four individually shielded twisted pairs with 23 AWG solid copper conductors cabled together in an unshielded outer jacket and conduct DGKat technology
4K HDBaseT technology or LAN signals
Optimised for Kramer hardware: use with all Kramer digital twisted pair sets transformer and receiver (DGKat and HDBaseT)
High-quality shielded RJ-45 plugs (with 50 µ gold-plated contacts)
Temperatures Operation: -20 to +60 °C
Temperatures storage, transport, installation: 0° to 50° C
Electrical standard: TIA/EIA 568-B
ISO/IEC 11801
Fire protection: IEC 60332-
Smoke density: IEC61034
Halogen-free: IEC 60754
Impedance: 1-100 MHz: 100 ± 15 Ohm / 100-250 MHz: 100 ± 20 Ohm / 250-500 MHz : 100 ± 50 Ohm
Propagation velocity: 76%
Mutual pair capacitance: <=42 pF/m
Capacitance Unbalanced Pair/Ground: <= 1500 pF/km
Max. line resistance: 79.8 Ohm/km
Max. Conductor DC Resistance: DC <1.5
Dielectric strength: 2.5 kV DC (2s)
Insulation resistance: > 5000 MOhm/km
Supply voltage: 30 V@+*Conductor properties:*@+@+
4 x 2 x 23 AWG
Annealed copper
Diameter: 0.56 ± 0.01 mm
Insulation material: skin/foam/skin HDPE
Diameter: 1.33 ± 0.1 mm
Colour: Per TIA/EIA 568-B
Shielding: Alu/PET per pair (Alu outside)
Co-wire: 90 % tinned copper
Bi-wire Ø: 0.4 ± 0.01 mm@+*Jacket properties:*@+@+
LSHF
Outer diameter: 7.2 ± 0.2 mm
Maximum Pulling Tension: 100 N
Bending radius: 6 cm
Colour: Blue RAL5012
